Spatial machine learning with the tidymodels framework

Introduction

In this blog post, we will show how to use the tidymodels framework for spatial machine learning. The tidymodels framework is a collection of R packages for modeling and machine learning using tidyverse principles.

Prepare data

Load the required packages:

library(terra)
library(sf)
library(tidymodels)
library(ranger)
library(dplyr)
library(spatialsample)
library(waywiser)
library(vip)

Read data:

trainingdata <- sf::st_read("https://github.com/LOEK-RS/FOSSGIS2025-examples/raw/refs/heads/main/data/temp_train.gpkg")
predictors <- terra::rast("https://github.com/LOEK-RS/FOSSGIS2025-examples/raw/refs/heads/main/data/predictors.tif")

Prepare data by extracting the training data from the raster and converting it to a sf object.

trainDat <- sf::st_as_sf(terra::extract(predictors, trainingdata, bind = TRUE))
predictor_names <- names(predictors) # Extract predictor names from the raster
response_name <- "temp"

A simple model training and prediction

First, we train a random forest model. This is done by defining a recipe and a model, and then combining them into a workflow. Such a workflow can then be used to fit the model to the data.

# Define the recipe
formula <- as.formula(paste(
    response_name,
    "~",
    paste(predictor_names, collapse = " + ")
))
recipe <- recipes::recipe(formula, data = trainDat)

rf_model <- parsnip::rand_forest(trees = 100, mode = "regression") |>
    set_engine("ranger", importance = "impurity")

# Create the workflow
workflow <- workflows::workflow() |>
    workflows::add_recipe(recipe) |>
    workflows::add_model(rf_model)

# Fit the model
rf_fit <- parsnip::fit(workflow, data = trainDat)

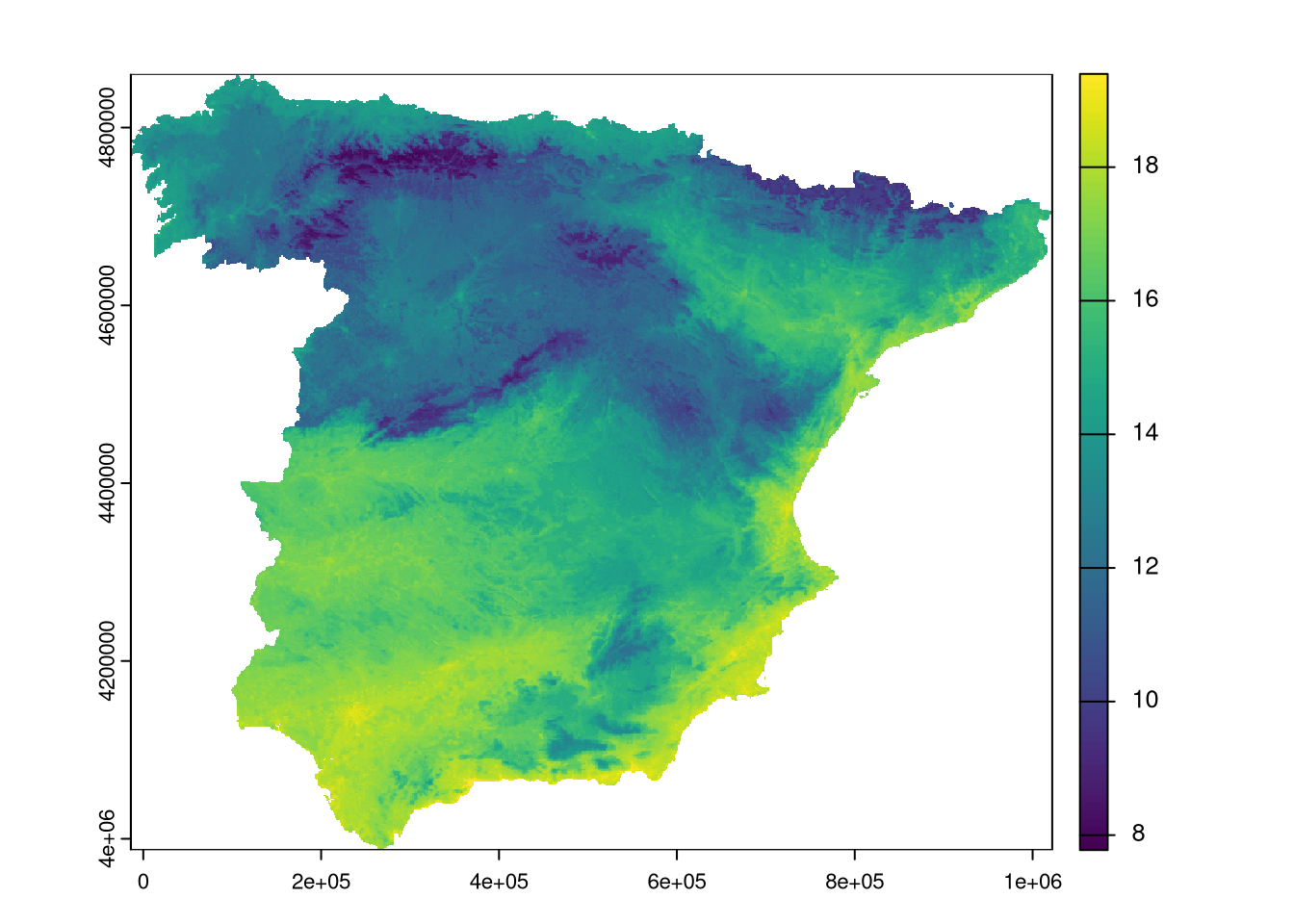

Now, let’s use the model for spatial prediction with terra::predict().

prediction_raster <- terra::predict(predictors, rf_fit, na.rm = TRUE)
plot(prediction_raster)

Spatial cross-validation

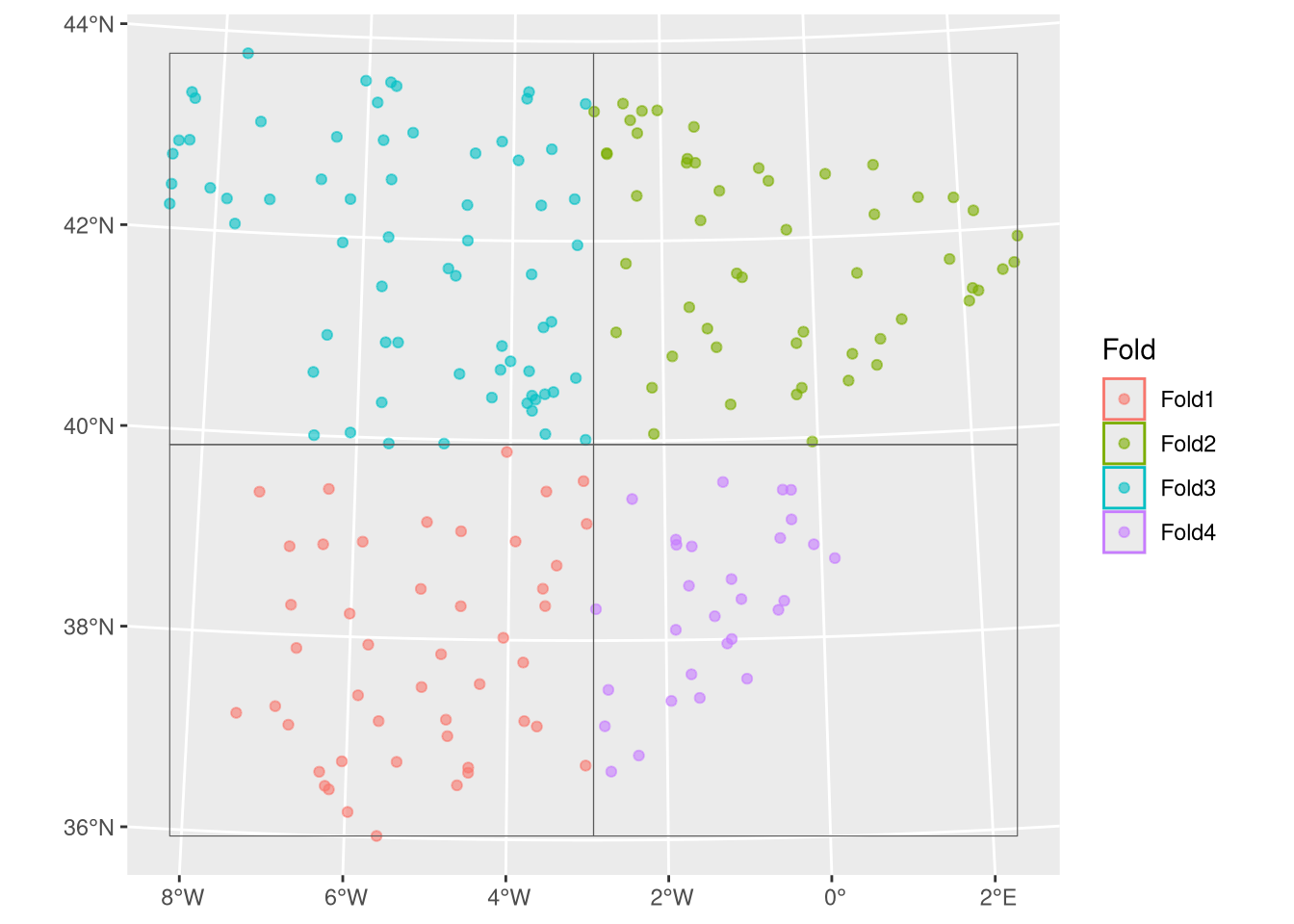

Cross-validation requires to specify how the data is split into folds. Here, we define a non-spatial cross-validation with rsample::vfold_cv() and a spatial cross-validation with spatialsample::spatial_block_cv().

random_folds <- rsample::vfold_cv(trainDat, v = 4)
block_folds <- spatialsample::spatial_block_cv(trainDat, v = 4, n = 2)
spatialsample::autoplot(block_folds)

# control cross-validation
keep_pred <- tune::control_resamples(save_pred = TRUE, save_workflow = TRUE)

Next, we fit the model to the data using cross-validation with tune::fit_resamples().

### Cross-validation
rf_random <- tune::fit_resamples(
    workflow,
    resamples = random_folds,
    control = keep_pred
)
rf_spatial <- tune::fit_resamples(
    workflow,
    resamples = block_folds,
    control = keep_pred
)

To compare the fitted models, we can use the tune::collect_metrics() function to get the metrics.

### get CV metrics
tune::collect_metrics(rf_random)

# A tibble: 2 × 6
  .metric .estimator  mean     n std_err .config
  <chr>   <chr>      <dbl> <int>   <dbl> <chr>
1 rmse    standard   0.944     4  0.0923 Preprocessor1_Model1
2 rsq     standard   0.903     4  0.0192 Preprocessor1_Model1

tune::collect_metrics(rf_spatial)

# A tibble: 2 × 6
  .metric .estimator  mean     n std_err .config
  <chr>   <chr>      <dbl> <int>   <dbl> <chr>
1 rmse    standard   1.41      4  0.292  Preprocessor1_Model1
2 rsq     standard   0.719     4  0.0744 Preprocessor1_Model1

# rf_spatial$.metrics # metrics from each fold

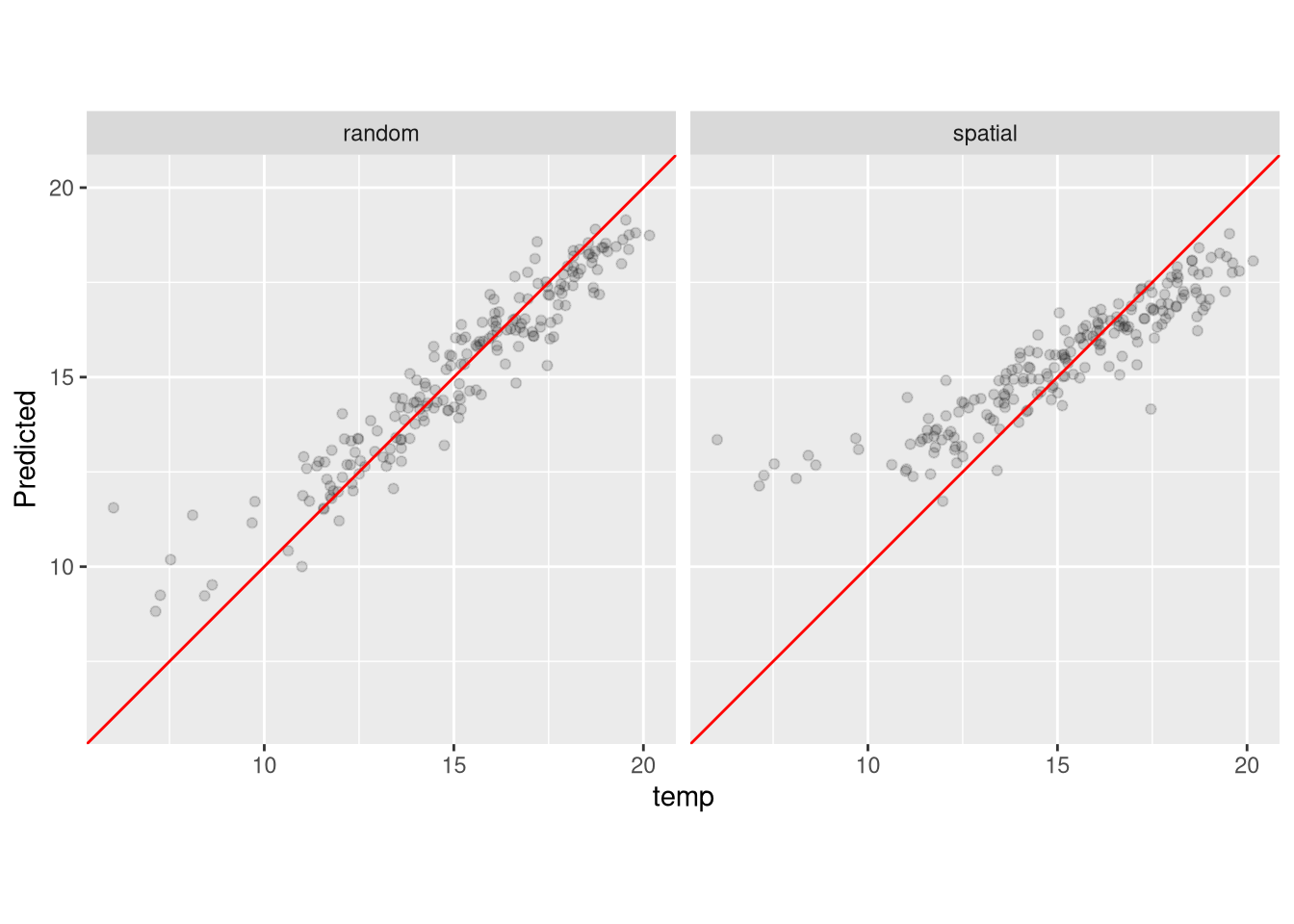

Additionally, we can visualize the models by extracting their predictions with tune::collect_predictions() and plotting them.

Model tuning: spatial hyperparameter tuning and variable selection

# mark two parameters for tuning:
rf_model <- parsnip::rand_forest(
    trees = 100,
    mode = "regression",
    mtry = tune(),
    min_n = tune()
) |>
    set_engine("ranger", importance = "impurity")

workflow <- update_model(workflow, rf_model)

# define tune grid:
grid_rf <-
    grid_space_filling(
        mtry(range = c(1, 20)),
        min_n(range = c(2, 10)),
        size = 30
    )

# tune:
rf_tuning <- tune_grid(
    workflow,
    resamples = block_folds,
    grid = grid_rf,
    control = keep_pred
)

rf_tuning |>
    collect_metrics()

# A tibble: 60 × 8
    mtry min_n .metric .estimator  mean     n std_err .config
   <int> <int> <chr>   <chr>      <dbl> <int>   <dbl> <chr>
 1     1     5 rmse    standard   1.87      4  0.297  Preprocessor1_Model01
 2     1     5 rsq     standard   0.611     4  0.0806 Preprocessor1_Model01
 3     1     9 rmse    standard   1.91      4  0.257  Preprocessor1_Model02
 4     1     9 rsq     standard   0.594     4  0.0930 Preprocessor1_Model02
 5     2     4 rmse    standard   1.62      4  0.315  Preprocessor1_Model03
 6     2     4 rsq     standard   0.662     4  0.0924 Preprocessor1_Model03
 7     2     2 rmse    standard   1.52      4  0.263  Preprocessor1_Model04
 8     2     2 rsq     standard   0.712     4  0.0795 Preprocessor1_Model04
 9     3     7 rmse    standard   1.48      4  0.292  Preprocessor1_Model05
10     3     7 rsq     standard   0.702     4  0.0747 Preprocessor1_Model05
# ℹ 50 more rows

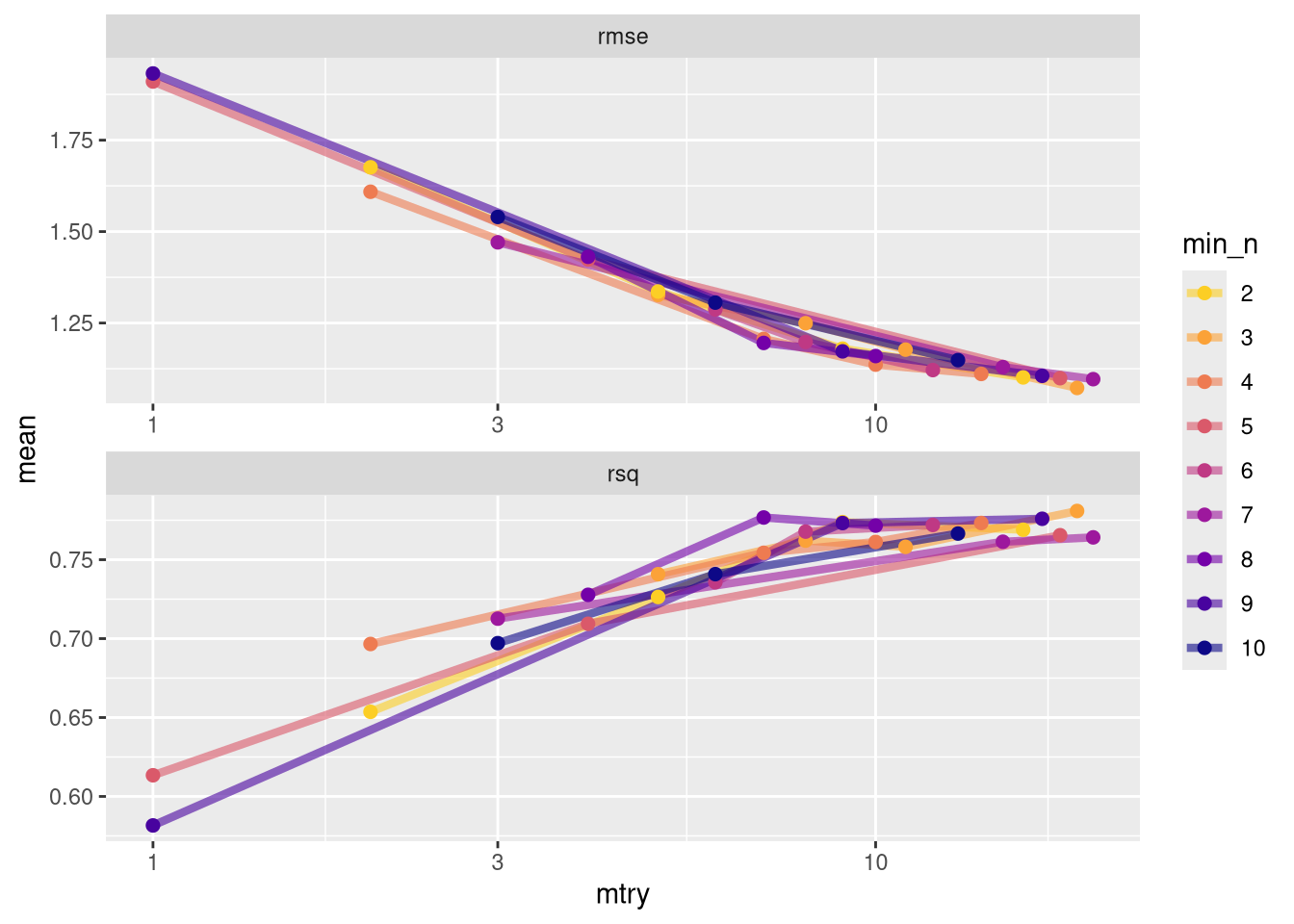

rf_tuning |>
    collect_metrics() |>
    mutate(min_n = factor(min_n)) |>
    ggplot(aes(mtry, mean, color = min_n)) +
    geom_line(linewidth = 1.5, alpha = 0.6) +
    geom_point(size = 2) +
    facet_wrap(~.metric, scales = "free", nrow = 2) +
    scale_x_log10(labels = scales::label_number()) +
    scale_color_viridis_d(option = "plasma", begin = .9, end = 0)

finalmodel <- fit_best(rf_tuning)
finalmodel

══ Workflow [trained] ══════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: rand_forest()

── Preprocessor ────────────────────────────────────────────────────────────────
0 Recipe Steps

── Model ───────────────────────────────────────────────────────────────────────
Ranger result

Call:
 ranger::ranger(x = maybe_data_frame(x), y = y, mtry = min_cols(~15L,      x), num.trees = ~100, min.node.size = min_rows(~7L, x), importance = ~"impurity",      num.threads = 1, verbose = FALSE, seed = sample.int(10^5,          1))

Type:                             Regression
Number of trees:                  100
Sample size:                      195
Number of independent variables:  22
Mtry:                             15
Target node size:                 7
Variable importance mode:         impurity
Splitrule:                        variance
OOB prediction error (MSE):       0.7108042
R squared (OOB):                  0.9108492

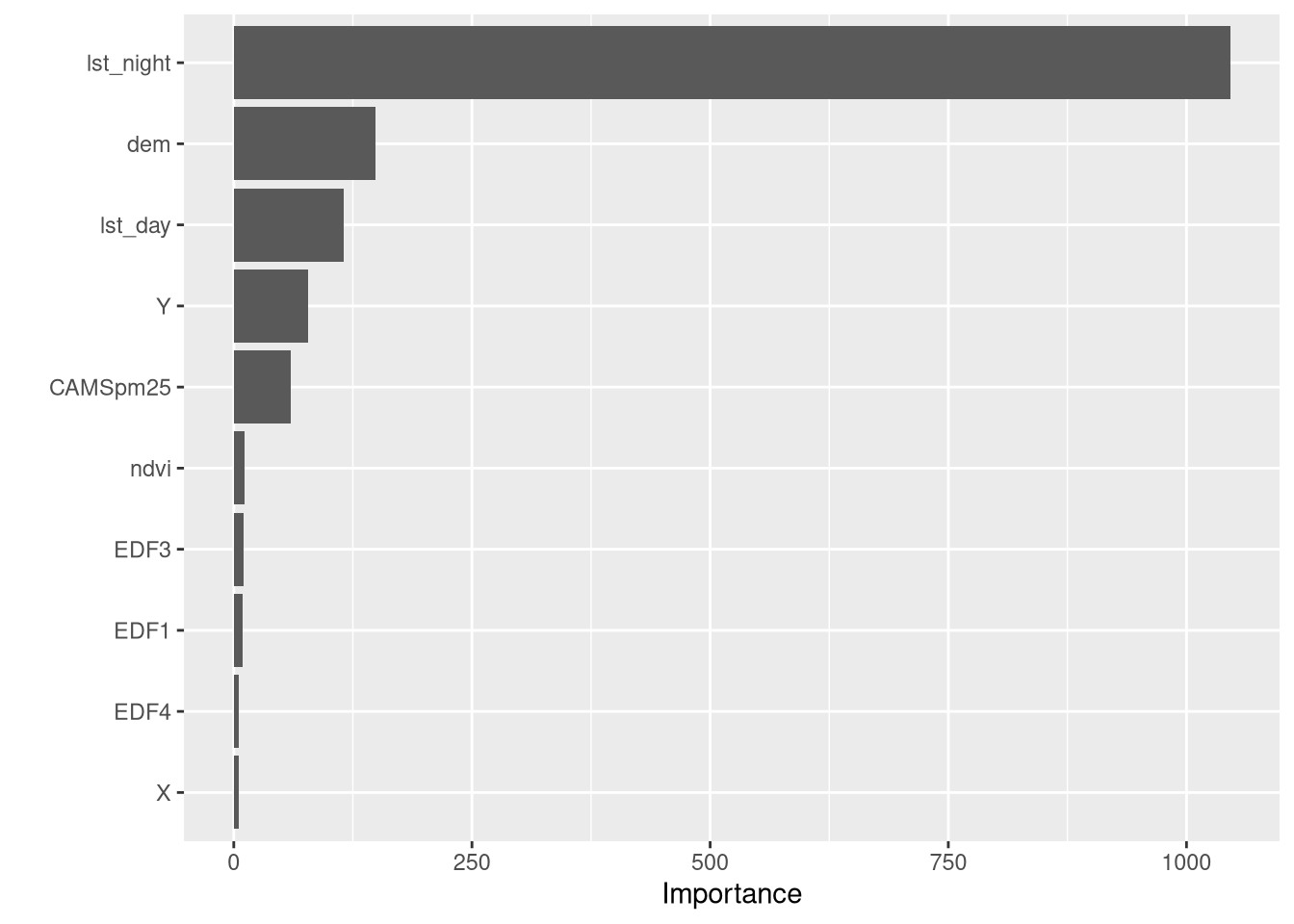

imp <- extract_fit_parsnip(finalmodel) |>
    vip::vip()
imp

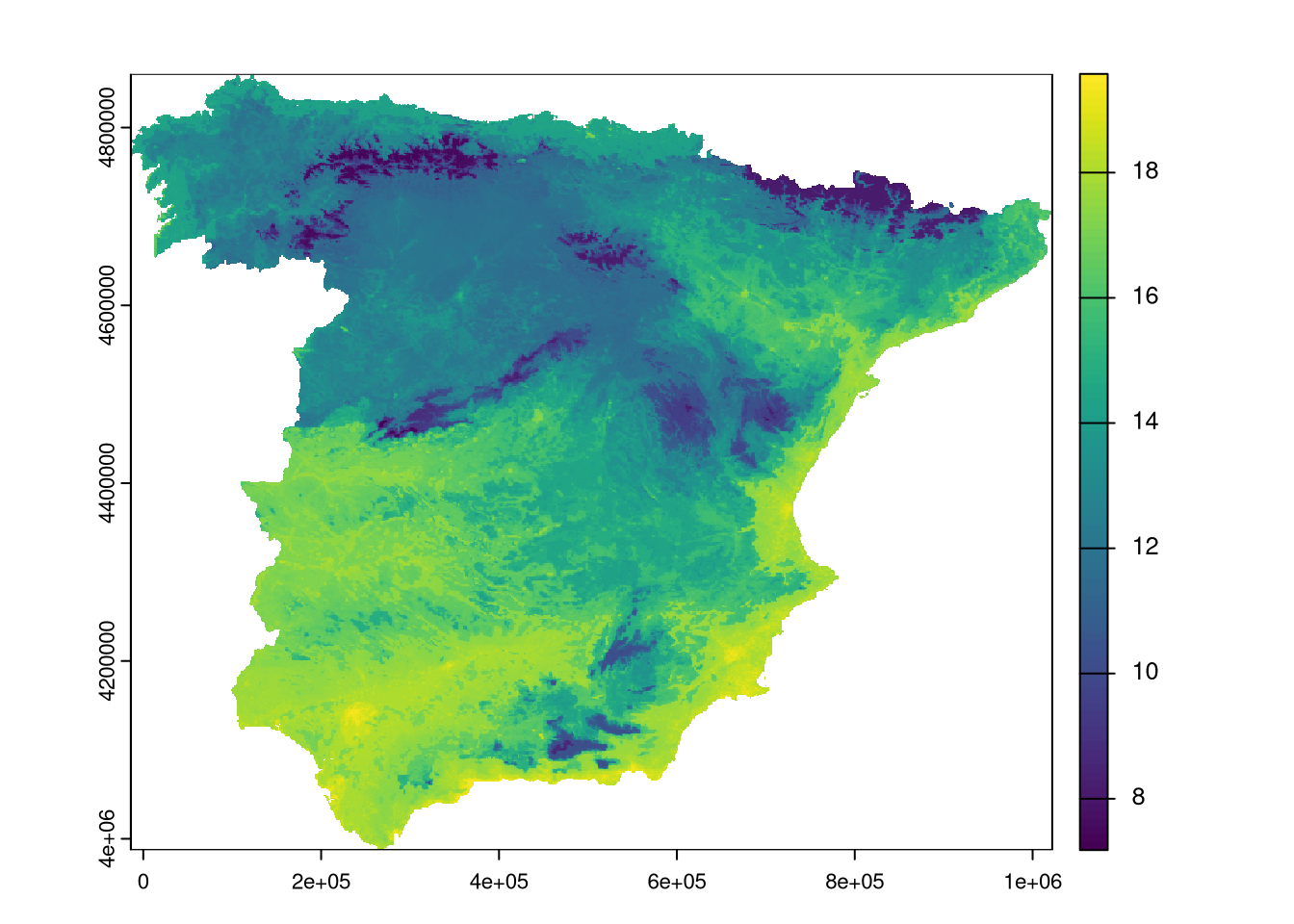

final_pred <- terra::predict(predictors, finalmodel, na.rm = TRUE)
plot(final_pred)

Area of applicability

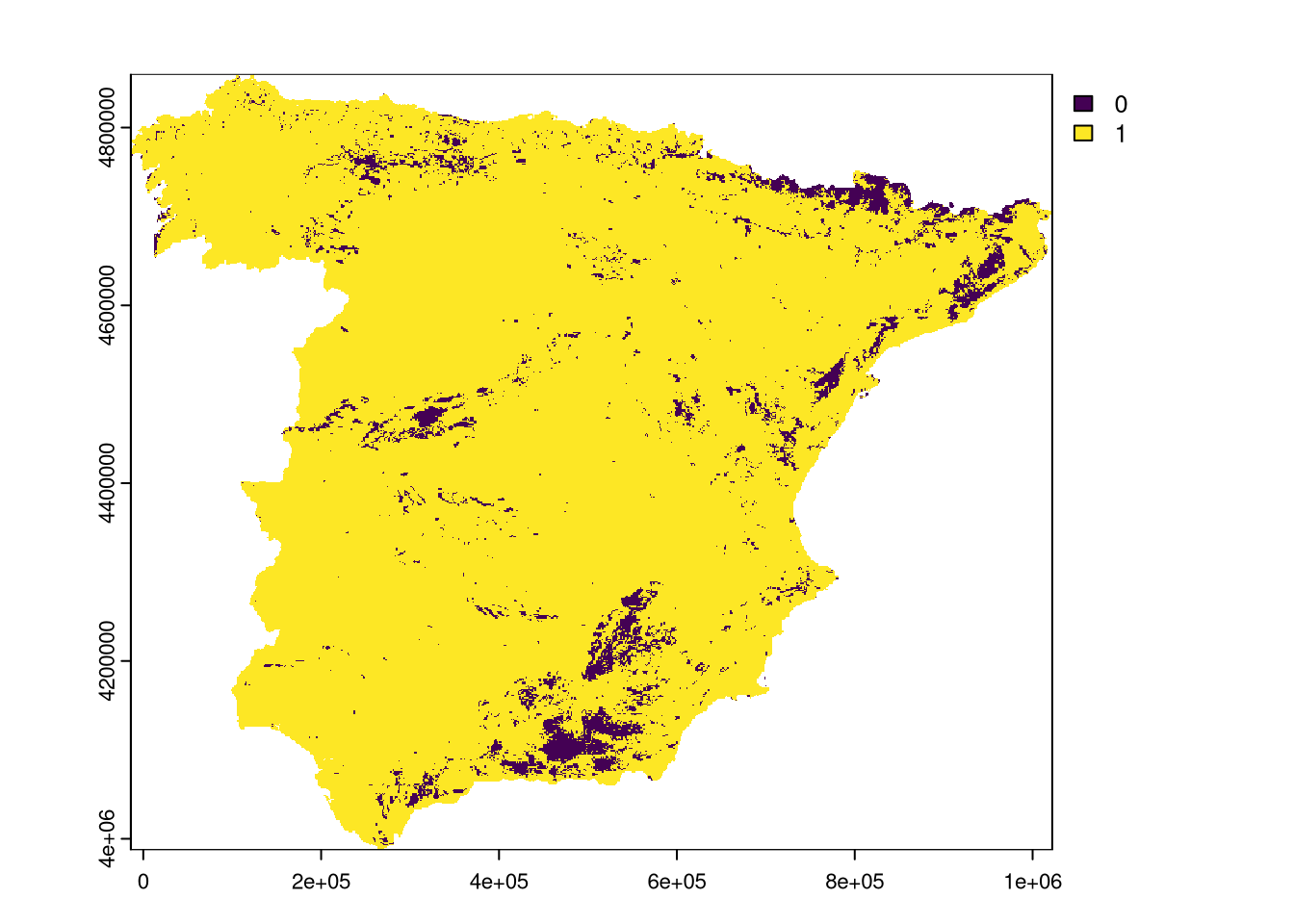

The waywiser package provides a set of tools for assessing spatial models, including an implementation of multi-scale assessment and area of applicability. The area of applicability is a measure of how well the model (given the training data) can be applied to the prediction data. It can be calculated with the ww_area_of_applicability() function, and then predicted on the raster with terra::predict().

model_aoa <- waywiser::ww_area_of_applicability(
    st_drop_geometry(trainDat[, predictor_names]),
    importance = vip::vi_model(finalmodel)
)
AOA <- terra::predict(predictors, model_aoa)
plot(AOA$aoa)

More information on the waywiser package can be found in its documentation.

Summary

This blog post showed how to use the tidymodels framework for spatial machine learning. We demonstrated how to train a random forest model, perform spatial cross-validation, tune hyperparameters, and assess the area of applicability. We also showed how to visualize the results and extract variable importance.¹

The tidymodels framework with its packages spatialsample and waywiser provides a powerful and flexible way to perform spatial machine learning in R. At the same time, it is a bit more complex than caret: it requires getting familiar with several packages² and relationships between them. Thus, the decision of which framework to use depends on the specific needs and preferences of the user.
