Spatial machine learning with R: caret, tidymodels, and mlr3

rstats

sml

A comparison of three popular machine learning frameworks in R for spatial machine learning tasks.

Author

Published

April 30, 2025

This is the first part of a blog post series on spatial machine learning with R.

The R language has a variety of packages for machine learning, and many of them can be used for machine learning tasks in a spatial context (spatial machine learning). Spatial machine learning is generally different from traditional machine learning, as variables located closer to each other are often more similar than those located further apart. Thus, we need to consider that when building machine learning models.

In this blog post, we compare three of the most popular machine learning frameworks in R: caret, tidymodels, and mlr3. We use a simple example to demonstrate how to use these frameworks for a spatial machine learning task and how their workflows differ. The goal here is to provide a general sense of how the spatial machine learning workflow looks like, and how different frameworks can be used to achieve the same goal.

A possible workflow of the spatial machine learning task.

Inputs

Our task is to predict the temperature in Spain using a set of covariates. We have two datasets for that purpose: the first one, temperature_train, contains the temperature measurements from 195 locations in Spain, and the second one, predictor_stack, contains the covariates we will use to predict the temperature. These covariates include variables such as population density (popdens), distance to the coast (coast), and elevation (elev), among others.

library(terra)
library(sf)
train_points <- sf::read_sf("https://github.com/LOEK-RS/FOSSGIS2025-examples/raw/refs/heads/main/data/temp_train.gpkg")
predictor_stack <- terra::rast("https://github.com/LOEK-RS/FOSSGIS2025-examples/raw/refs/heads/main/data/predictors.tif")

We use a subset of fourteen of the available covariates to predict the temperature. But before doing that, to prepare our data for modeling, we need to extract the covariate values at the locations of our training points.

predictor_names <- names(predictor_stack)[1:14]
temperature_train <- terra::extract(predictor_stack[[predictor_names]],
    train_points,
    bind = TRUE
) |>
    sf::st_as_sf()

Now, our temperature_train dataset contains the temperature measurements and the covariate values at each location and is ready for modeling.

Loading packages

Using each of the frameworks requires loading the respective packages.

library(caret)              # for modeling
library(blockCV)            # for spatial cross-validation
library(CAST)               # for area of applicability

library(tidymodels)         # metapackage for modeling
library(spatialsample)      # for spatial cross-validation
library(waywiser)           # for area of applicability
library(vip)                # for variable importance (used in AOA)

library(mlr3verse)          # metapackage for mlr3 modeling
library(mlr3spatiotempcv)   # for spatial cross-validation
library(CAST)               # for area of applicability
lgr::get_logger("mlr3")$set_threshold("warn")

Model specification

Each of the frameworks has its own way of setting up the modeling workflow. This may include defining the model, the resampling method, and the hyperparameter values¹. In this example, we use random forest models as implemented in the ranger package with the following hyperparameters:

mtry: the number of variables randomly sampled as candidates at each split of 8
splitrule: the splitting rule of "extratrees"
min.node.size: the minimum size of terminal nodes of 5

We also use a spatial cross-validation method with 5 folds. It means that the data is divided into many spatial blocks, and each block is assigned to a fold. The model is trained on a set of blocks belonging to the training set and evaluated on the remaining blocks. Note that each framework has its own way of defining the resampling method, and thus, the implementation and the folds may differ slightly.

For caret, we define the hyperparameter grid using the expand.grid() function, and the resampling method using the trainControl() function. In this case, to use spatial cross-validation, we use the blockCV package to create the folds, and then pass them to the trainControl() function.

set.seed(22)
# hyperparameters
tn_grid = expand.grid(
    mtry = 8,
    splitrule = "extratrees",
    min.node.size = 5
)

# resampling

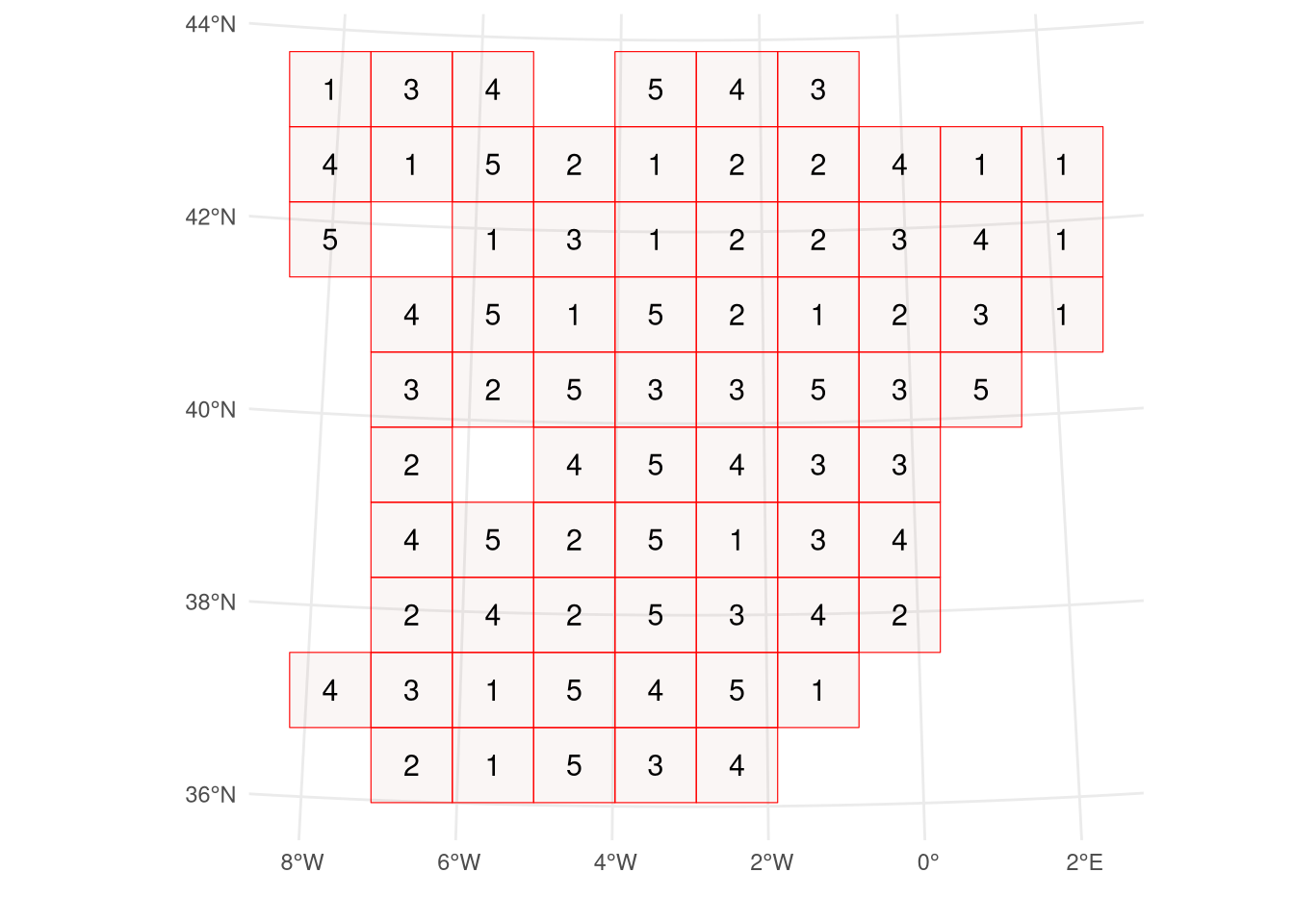

spatial_blocks <- blockCV::cv_spatial(
    temperature_train,
    k = 5,
    hexagon = FALSE,
    progress = FALSE
)


  train test
1   155   40
2   160   35
3   155   40
4   154   41
5   156   39

train_ids <- lapply(spatial_blocks$folds_list, function(x) x[[1]])
test_ids <- lapply(spatial_blocks$folds_list, function(x) x[[2]])

tr_control <- caret::trainControl(
    method = "cv",
    index = train_ids,
    indexOut = test_ids,
    savePredictions = TRUE
)

In tidymodels, the steps are to:

Specify the modeling formula using the recipe() function.
Define the model using a function from the parsnip package, including the hyperparameters.
Create a workflow using the workflow() function, which combines the recipe and the model.
Define the resampling method using the spatial_block_cv() function from the spatialsample package.

set.seed(22)
form <- as.formula(paste0("temp ~ ", paste(predictor_names, collapse = " + ")))
recipe <- recipes::recipe(form, data = temperature_train)

rf_model <- parsnip::rand_forest(
    trees = 100,
    mtry = 8,
    min_n = 5,
    mode = "regression"
) |>
    set_engine("ranger", splitrule = "extratrees", importance = "impurity")

workflow <- workflows::workflow() |>
    workflows::add_recipe(recipe) |>
    workflows::add_model(rf_model)

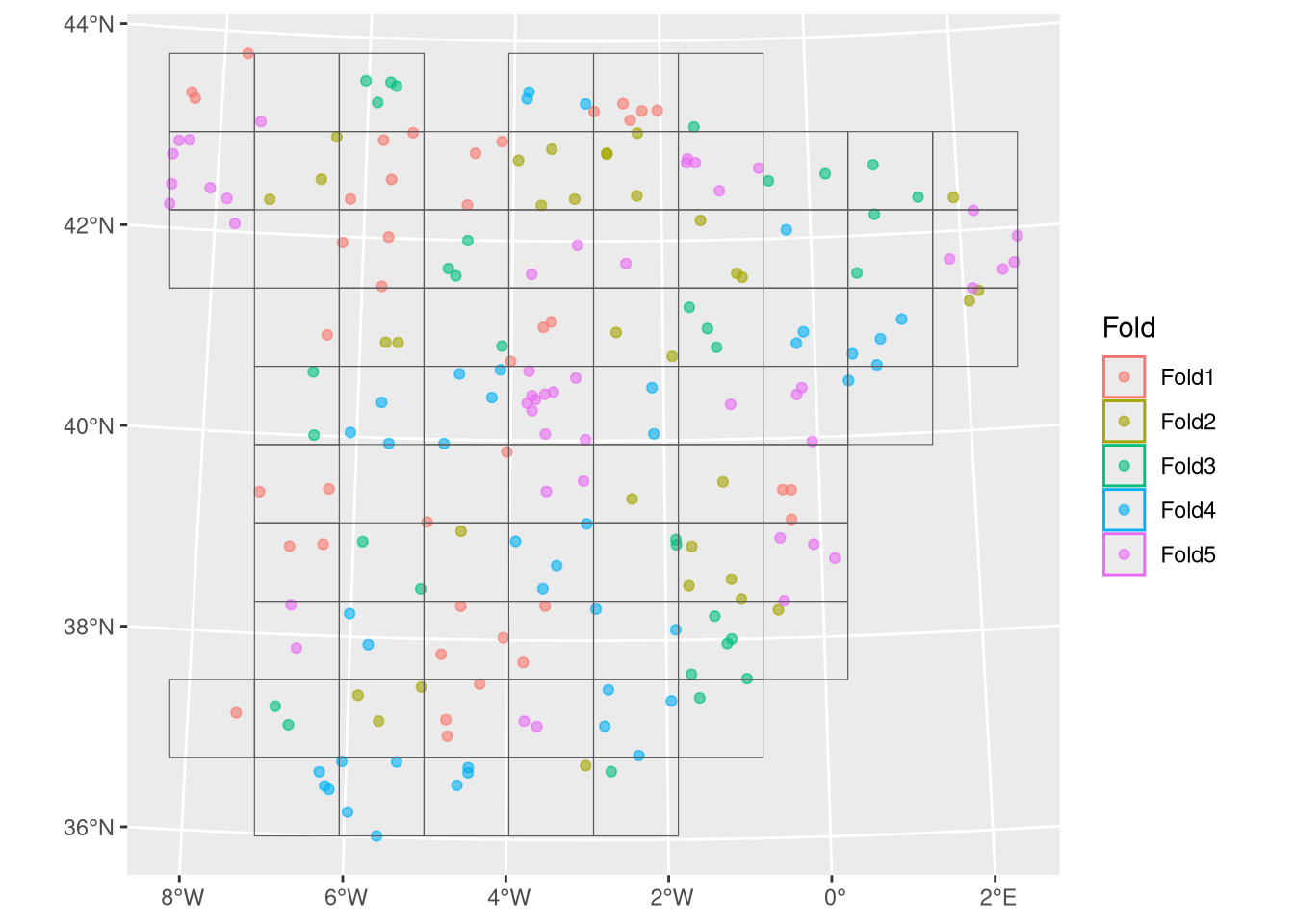

block_folds <- spatialsample::spatial_block_cv(temperature_train, v = 5)
spatialsample::autoplot(block_folds)

The basic mlr3 steps are connected to its terminology:

Task: define the task using the as_task_regr_st() function, which specifies the target variable and the data.
Learner: define the model using the lrn() function, which specifies the model type and the hyperparameters.
Resampling: define the resampling method using the rsmp() function, which specifies the type of resampling and the number of folds. Here, we use the spcv_block resampling method.

set.seed(22)
task <- mlr3spatiotempcv::as_task_regr_st(temperature_train, target = "temp")
learner <- mlr3::lrn("regr.ranger",
    num.trees = 100,
    importance = "impurity",
    mtry = 8,
    min.node.size = 5,
    splitrule = "extratrees"
)
resampling <- mlr3::rsmp("spcv_block", folds = 5,
                         cols = 10, rows = 10)

Modeling

The main function of the caret package is train(), which takes the formula, the data, the model type, the tuning grid, the training control (including the resampling method), and some other arguments (e.g., the number of trees). The train() function will automatically perform the resampling and hyperparameter tuning (if applicable). The final model is stored in the finalModel object.

model_caret <- caret::train(
    temp ~ .,
    data = st_drop_geometry(temperature_train),
    method = "ranger",
    tuneGrid = tn_grid,
    trControl = tr_control,
    num.trees = 100,
    importance = "impurity"
)
model_caret_final <- model_caret$finalModel

In tidymodels, the fit_resamples() function takes the previously defined workflow and the resampling folds. Here, we also use the control argument to save the predictions and the workflow, which can be useful for later analysis. The fit_best() function is used to fit the best model based on the resampling results.

rf_spatial <- tune::fit_resamples(
    workflow,
    resamples = block_folds,
    control = tune::control_resamples(save_pred = TRUE, save_workflow = TRUE)
)
model_tidymodels <- fit_best(rf_spatial)

The mlr3 workflow applies the resample() function to the task, the learner, and the resampling method. Then, to get the final model, we use the train() function on previously defined task and learner.

model_mlr3 <- mlr3::resample(
    task = task,
    learner = learner,
    resampling = resampling
)
learner$train(task)

Evaluation

After the models are trained, we want to evaluate their performance. Here, we use two of the most common metrics for regression tasks: the root mean square error (RMSE) and the coefficient of determination (R²).

RMSE and R² are calculated by default in caret. The performance metrics are then stored in the results object of the model.

model_caret$results

  mtry  splitrule min.node.size     RMSE  Rsquared       MAE    RMSESD
1    8 extratrees             5 1.119936 0.8406388 0.9008884 0.2269326
  RsquaredSD     MAESD
1 0.06159361 0.1399976

RMSE and R² are calculated by default in tidymodels. The performance metrics are extracted from the resampling results using the collect_metrics() function.

tune::collect_metrics(rf_spatial)

# A tibble: 2 × 6
  .metric .estimator  mean     n std_err .config
  <chr>   <chr>      <dbl> <int>   <dbl> <chr>
1 rmse    standard   1.10      5  0.0903 Preprocessor1_Model1
2 rsq     standard   0.858     5  0.0424 Preprocessor1_Model1

We need to specify the measures we want to calculate using the msr() function. Then, the aggregate() method is used to calculate the selected performance metrics.

my_measures <- c(mlr3::msr("regr.rmse"), mlr3::msr("regr.rsq"))
model_mlr3$aggregate(measures = my_measures)

regr.rmse       rsq
1.1391701 0.8209292

Prediction

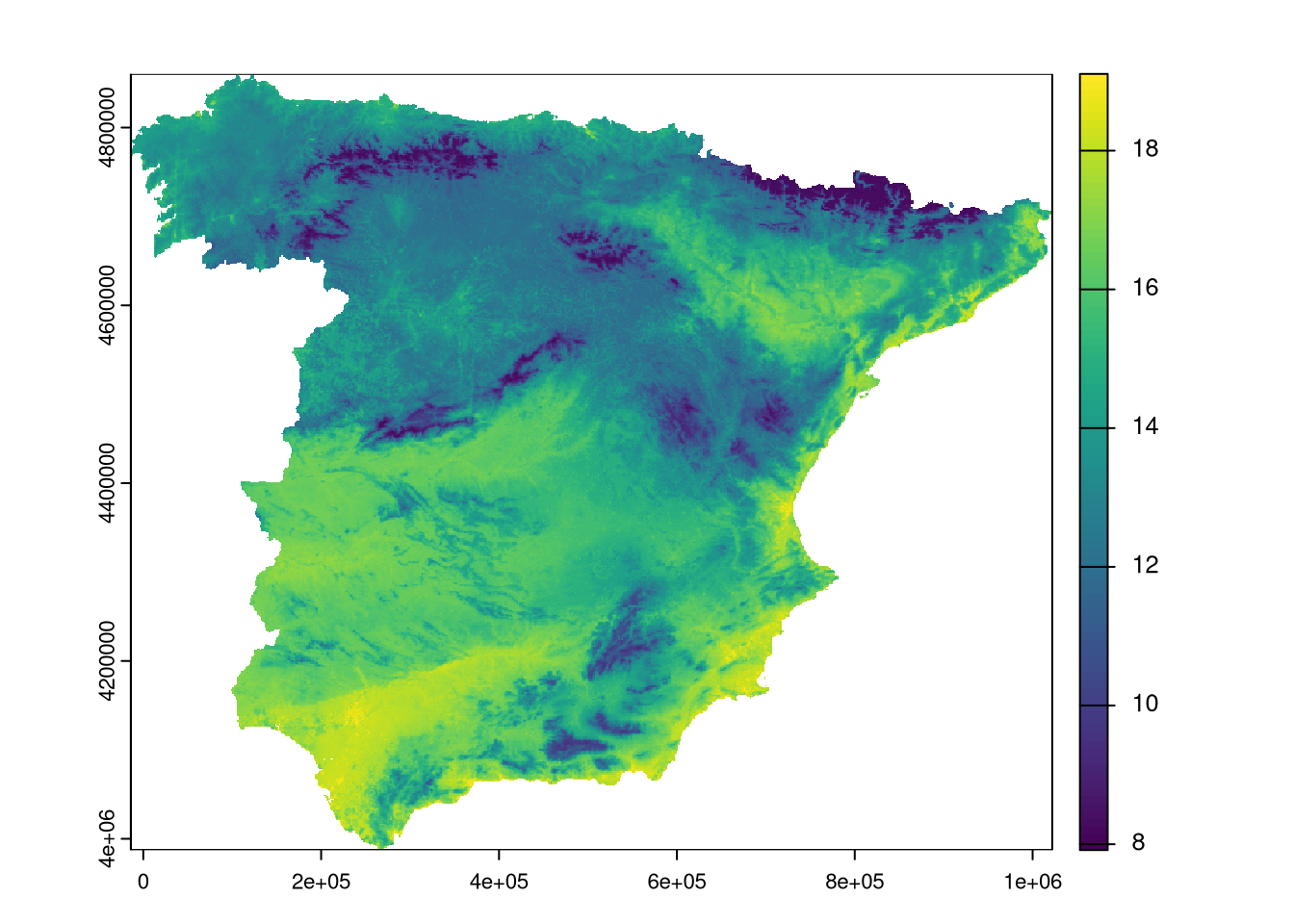

Our goal is to predict the temperature in Spain using the covariates from the predictor_stack dataset. Thus, we want to obtain a map of the predicted temperature values for the entire country. The predict() function of the terra package makes model predictions on the new raster data.

pred_caret <- terra::predict(predictor_stack, model_caret, na.rm = TRUE)
plot(pred_caret)

pred_tidymodels <- terra::predict(predictor_stack, model_tidymodels, na.rm = TRUE)
plot(pred_tidymodels)

pred_mlr3 <- terra::predict(predictor_stack, learner, na.rm = TRUE)
plot(pred_mlr3)

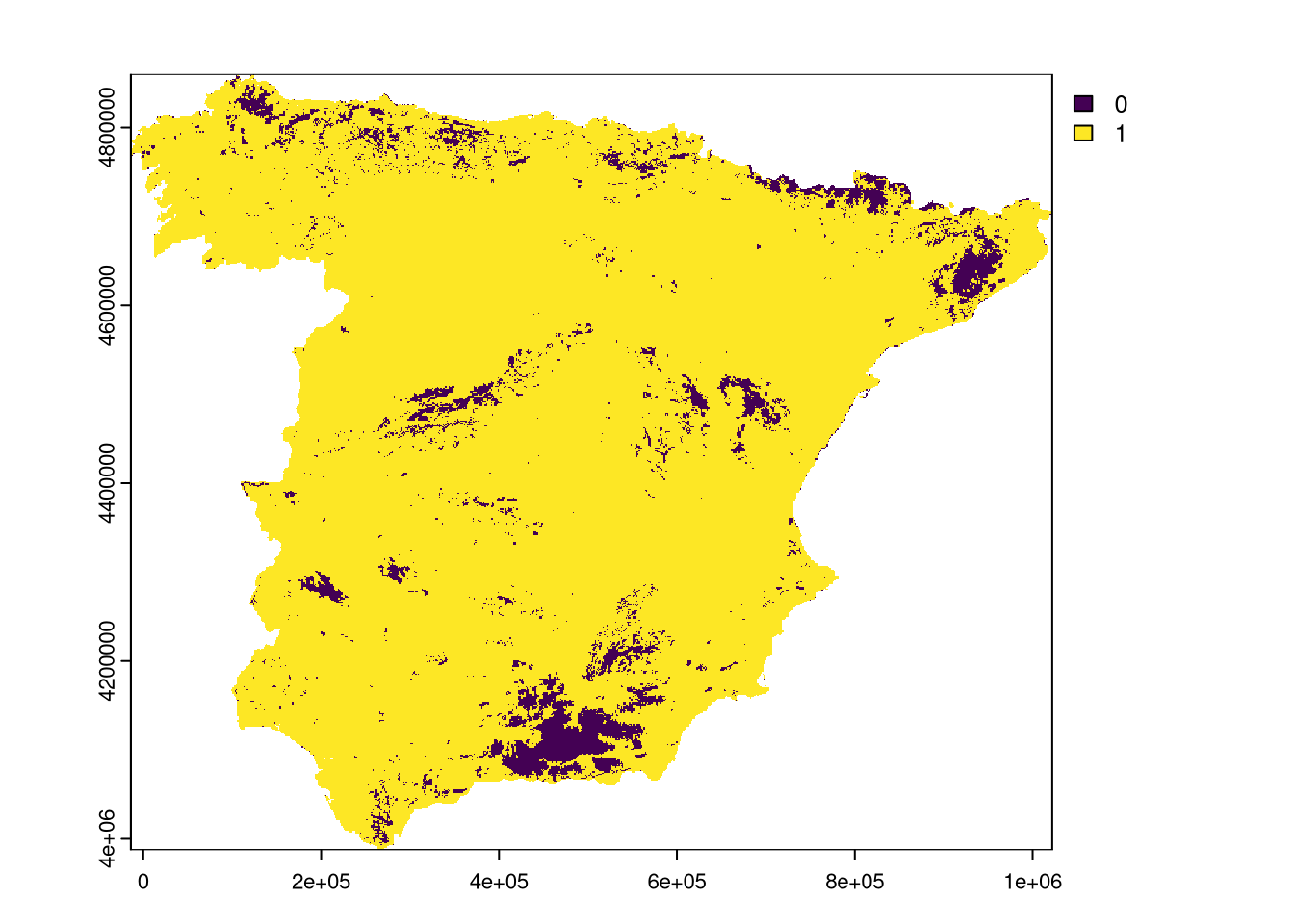

Area of applicability

The area of applicability (AoA) is a method to assess the what is the area of the input space that is similar to the training data. It is a useful tool to evaluate the model performance and to identify the areas where the model can be applied. Areas outside the AoA are considered to be outside the model’s applicability domain, and thus, the predictions in these areas should be interpreted with caution or not used at all.

The AoA method’s original implementation is in the CAST package – a package that extends the caret package. The AoA is calculated using the aoa() function, which takes the new data (the covariates) and the model as input.

AOA_caret <- CAST::aoa(
    newdata = predictor_stack,
    model = model_caret,
    verbose = FALSE
)
plot(AOA_caret$AOA)

The waywiser package implements the AoA method for tidymodels². The ww_area_of_applicability() function takes the training data and variable importance as input. Then, to obtain the AoA, we use the predict() function from the terra package.³

model_aoa <- waywiser::ww_area_of_applicability(
    st_drop_geometry(temperature_train[, predictor_names]),
    importance = vip::vi_model(model_tidymodels)
)
AOA_tidymodels <- terra::predict(predictor_stack, model_aoa)
plot(AOA_tidymodels$aoa)

The CAST package can calculate the AoA for mlr3 models. However, then we need to specify various arguments, such as a raster with covariates, the training data, the variables to be used, the weights of the variables, and the cross-validation folds.

rsmp_cv <- resampling$instantiate(task)

AOA_mlr3 <- CAST::aoa(
    newdata = predictor_stack,
    train = as.data.frame(task$data()),
    variables = task$feature_names,
    weight = data.frame(t(learner$importance())),
    CVtest = rsmp_cv$instance[order(row_id)]$fold,
    verbose = FALSE
)
plot(AOA_mlr3$AOA)

Conclusion

In this blog post, we compared three of the most popular machine learning frameworks in R: caret, tidymodels, and mlr3. We demonstrated how to use these frameworks for a spatial machine learning task, including model specification, training, evaluation, prediction, and obtaining the area of applicability.

There is a lot of overlap in functionality between the three frameworks. Simultaneously, the frameworks differ in their design philosophy and implementation. Some, as caret, are more focused on providing a consistent and concise interface, but it offers limited flexibility. Others, like tidymodels and mlr3, are more modular and flexible, allowing for more complex workflows and customizations, which also makes them more complex to learn and use.

Many additional steps can be added to the presented workflow, such as feature engineering, variable selection, hyperparameter tuning, model interpretation, and more. In the next blog posts, we will show these three frameworks in more detail, and then also present some other packages that can be used for spatial machine learning in R.

Footnotes

Or the hyperparameter tuning grid, in a more advanced scenario.↩︎
It is not a wrapper for the CAST package, but a separate implementation with some differences as you may read in the function documentation – ?ww_area_of_applicability↩︎
Thus, this approach allow to check the AoA for each new data set, not only the training data.↩︎
